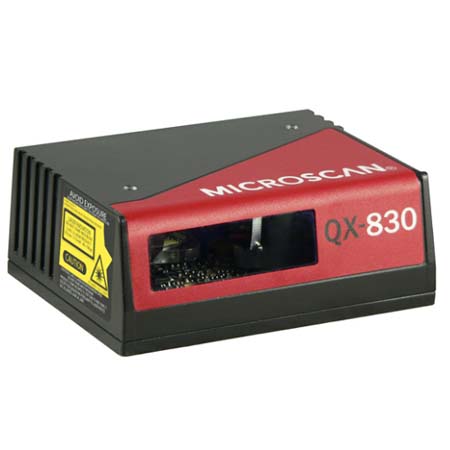

Microscan邁思肯QX-830工業用激光掃描器
  • 產品說明
  • 主要特征
  • 技術指標
  • 適用行業
  • 資源下載

    • 識別產品Microscan邁思肯掃描器歡迎來電咨詢Microscan邁思肯掃描器價格和型號：020-87030040。

    QX-830工業條碼掃描器結合革命性的靈活連接和高性能解碼功能，可在幾乎任何自動化環境中可靠地讀取1D條形碼。除了快速連接系統和X-Mode技術，QX-830具有IP64工業密封和可選的嵌入式以太網協議。

    高性能，簡單的連接和IP64外殼使QX-830成為任何工業應用的理想工業條碼掃描器。

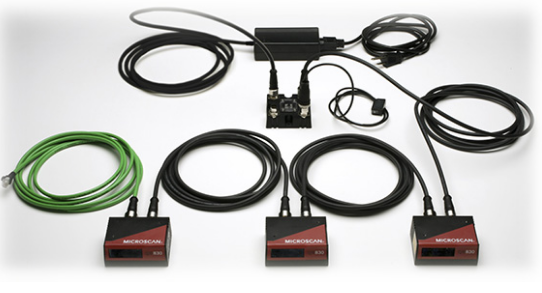

    快速連接系統：M12連接器和電線。即插即用設置。單或多掃描儀解決方案

    X-Mode技術：解碼損壞，打印不良或未對齊的代碼。確保高讀取速率和吞吐量。

    高性能：強大的解碼功能可以在高達10”（254 mm）波束寬度的條件下可靠地讀取條形碼到30”（762 mm）。

    實時反饋：掃描儀側面的可見LED指示燈和“良好讀取”綠色閃光燈可確認掃描儀的性能。綠色閃光燈在掃描儀的360度半徑范圍內可見。

    以太網協議：QX-830包括可選的嵌入式以太網TCP / IP和EtherNet / IP，用于高速通信。

    靈活性：QX-830的緊湊尺寸允許靈活定位各種應用。



    Microscan邁思肯QX-830工業用激光掃描器型號表
    Part NumberDescription
    FIS-0830-0001GQX-830, Industrial Barcode Reader, Single Line, Low Density, Serial
    FIS-0830-0002GQX-830, Industrial Barcode Reader, Single Line, Medium Density, Serial
    FIS-0830-0003GQX-830, Industrial Barcode Reader, Single Line, High Density, Serial
    FIS-0830-0004GQX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial
    FIS-0830-0005GQX-830, Industrial Barcode Reader, Raster Line, Medium Density, Serial
    FIS-0830-0006GQX-830, Industrial Barcode Reader, Raster Line, High Density, Serial
    FIS-0830-0010GQX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial, Plastic Window
    FIS-0830-1001GQX-830, Industrial Barcode Reader, Single Line, Low Density, Serial+Ethernet
    FIS-0830-1002GQX-830, Industrial Barcode Reader, Single Line, Medium Density, Serial+Ethernet
    FIS-0830-1003GQX-830, Industrial Barcode Reader, Single Line, High Density, Serial+Ethernet
    FIS-0830-1004GQX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial+Ethernet
    FIS-0830-1005GQX-830, Industrial Barcode Reader, Raster Line, Medium Density, Serial+Ethernet
    FIS-0830-1006GQX-830, Industrial Barcode Reader, Raster Line, High Density, Serial+Ethernet
    FIS-0830-1010GQX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial+Ethernet, Plastic Window




    艾韋迅IVYSUN是Microscan邁思肯掃描器的中國區核心經銷商，貨源充足、確保正品。專業的Microscan邁思肯掃描器產品技術服務團隊，確保您采購使用無后顧之憂！購買國際品牌掃描器，請認準技術型服務商：艾韋迅IVYSUN (http://flowersoft.com.cn)。



    Microscan邁思肯QX-830工業用激光掃描器特點

    • 快速連接系統

    • X-Mode 技術

    • 高性能

    • 實時反饋

    • 以太網協議

    • 擺放靈活



    PDF417 碼



    		 PDF417 碼

    MicroPDF 碼



    		MicroPDF 碼

    GS1 Databar (RSS 碼)



    		GS1 Databar (RSS 碼)

    線性條碼



    線性條碼


    Microscan邁思肯QX-830工業用激光掃描器配件表
    Part NumberDescription
    QX-1 and Cordsets
    98-000103-02QX-1 Interface Device
    61-000148-02QX Cordset, Common, M12 12 Pin, Socket(Screw-down) to M12 12 Pin Plug(Screw-down), 3M
    61-000162-02QX Cordset, Common, M12 12 Pin, Socket(Screw-down) to M12 12 Pin Plug(Screw-down), 1M
    61-000153-02QX Cordset, Host, Serial M12 12 pin Socket(Screw-down) to DB9 Socket, 1M
    61-000164-02QX Cordset, Host, Serial, M12 12 pin Socket(Screw-down) to DB9 Socket, 1M
    61-000152-02QX Cordset, Host, Serial, M12 12 pin Socket(Screw-down) to DB9 Socket, 1M
    61-000165-02QX Cordset, Host, Serial M12 12 pin Plug(Screw-down) to DB9 Socket, 3M
    61-000163-02QX Cordset, Host, Ethernet, M12 8 pin Plug(Screw-down) to RJ45, 3M
    61-000160-02QX Cordset, Host, Ethernet, M12 8 pin Plug(Screw-down) to RJ45, 1M
    61-000161-02QX Cordset, M12 12 pin Plug(Screw-down) to MS-5100, 3M
    61-000166-02QX Cordset, M12 12 Pin Plug(Screw-down) to Flying Leads, 3M
    61-000167-02QX Cordset, M12 12 Pin Socket(Screw-down) to Flying Leads, 3M
    FIS-0210-0001GMS-Connect 210, Connectivity Box with Display
    FIS-0210-0002GMS-Connect 210, Connectivity Box
    FIS-0210-0003GMS-Connect 210, Connectivity Box with Display and Ethernet
    FIS-0210-0004GMS-Connect 210, Connectivity Box with Ethernet
    98-000013-04Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210
    98-000013-05Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210
    98-000013-06Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210
    Power Supplies
    97-000012-01QX Power Supply, M12 12 pin Socket, 1.3m
    97-000012-04QX Power Supply, M12 12 pin Plug, 1.3m
    Mounting and Connectors
    98-500006-01Mounting Plate Kit, Flat, Custom Surfaces
    98-200026-02Right Angle Mirror Kit
    20-610024-01Trigger Connector, 4-pin Plug (screw terminal and field wireable) (for self wiring)
    98-000016-01Mounting Arm/Adapter Kit, MS-820/QX-830/QX-870, 6 inch
    98-000037-01Extension Kit, All Scanners, 6 inch
    98-000054-01Kit, Mounting Stand Base Plate, Small
    Package Detector/Sensor
    99-000020-02QX Photo sensor, M12 4pin Plug, NPN, Dark On, 2m
    99-000020-01QX Photo sensor, M12 4pin Plug, NPN, Dark Off, 2m
    Software/Manuals
    37-000001-01TOOLS CD, User’s Manuals, ESP Software


    Microscan邁思肯QX-830工業用激光掃描器應用


    從輕型到重型的各種工業環境

    傳送帶生產線

    包裝和分類

    電子產品生產

    機器內部的嵌入式設備
