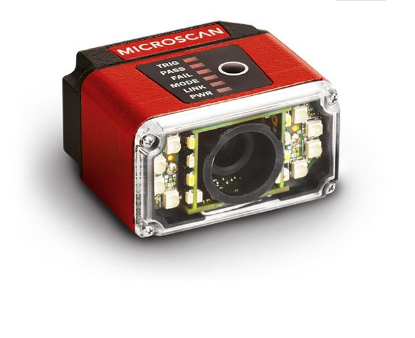

Microscan邁思肯ID–30 微型條碼掃描器
Microscan邁思肯ID–30 微型條碼掃描器
Microscan邁思肯ID–30 微型條碼掃描器
  • 產品說明
  • 主要特征
  • 技術指標
  • 適用行業
  • 資源下載

    • ID-30是一種具有巨大潛力的微型規格條碼成像儀，它沿用了Microscan公司30多年 積累的創(chuàng )新、節約空間及微型設計經驗，并采用了角落出線和高密度15針接頭（提供串 口、高速USB 2.0、通過USB連接以太網等功能）以及可選的液態鏡頭自動對焦。 ID-30 具有完美的尺寸、性能和集成靈活性，是原始設備制造商和機器制造商的理想 選擇。ID-30性能遠超同類競爭產品，為尋求微型尺寸、高性能解決方案的自動化工程 師提供了理想的解決方案。


    Microscan邁思肯ID–30 微型條碼掃描器可解碼如下

    標準型: 高對比度1D

    增強型：高對比度1D/2D

    X-Mode: 所有1D/2D, 包括低對比度、損壞或打印 質量差的條碼; 直接零件 標記 (DPM)



    Microscan邁思肯ID–30 微型條碼掃描器特點

    極其緊湊(44.5 mm x 38.1 mm x 25.4 mm)

    串口，高速USB 2.0 ，通 過USB連接以太網

    X-Mode 高級解碼算法

    可選的液態鏡頭自動對焦

    集成了目標和讀取/通過 指示燈

    可編程的紅色或白色LED 照明燈

    基于瀏覽器的設置界面 WebLink

    Microscan邁思肯ID–30 微型條碼掃描器參數

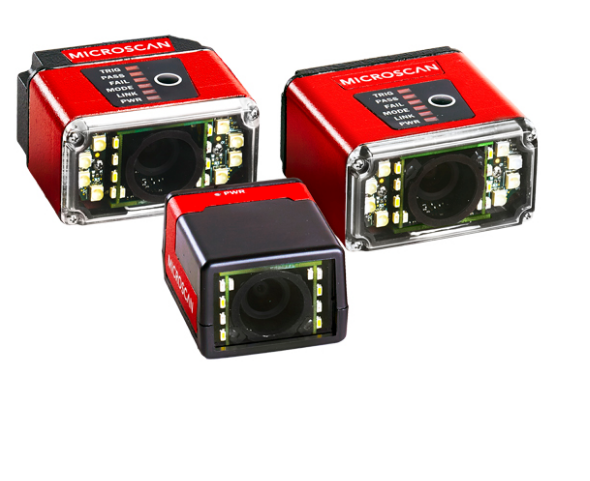

    		ID-20ID-30ID-40
    解碼Standard (High-Contrast 1D)
    Plus (High-Contrast 1D/2D)
    X-Mode (Poor or Damaged)    		Standard (High-Contrast 1D)
    Plus (High-Contrast 1D/2D)
    X-Mode (Poor or Damaged + DPM)    		Standard (High-Contrast 1D)
    Plus (High-Contrast 1D/2D)
    X-Mode (Poor or Damaged + DPM)
    速度Standard (up to 10 FPS)Standard (up to 10 FPS) or High-Speed (max. sensor FPS)Standard (up to 10 FPS) or High-Speed (max. sensor FPS)
    精度Standard- or High-DensityStandard- or High-DensityStandard- or High-Density
    傳感器 (CMOS)WVGA 0.34MP (752x480)
    Global Shutter, up to 60 FPS
    SXGA 1.2MP (1280x960)
    Global Shutter, up to 42 FPS
    QSXGA 5.0MP (2592x1944)
    Rolling Shutter, up to 5 FPS    		WVGA 0.34MP (752x480)
    Global Shutter, up to 60 FPS
    SXGA 1.2MP (1280x960)
    Global Shutter, up to 42 FPS
    QSXGA 5.0MP (2592x1944)
    Rolling Shutter, up to 5 FPS    		WVGA 0.34MP (752x480)
    Global Shutter, up to 60 FPS
    SXGA 1.2MP (1280x960)
    Global Shutter, up to 42 FPS
    QSXGA 5.0MP (2592x1944)
    Rolling Shutter, up to 5 FPS
    曝光50 - 100,000
    Default: 2,500 μs    		50 - 100,000
    Default: 2,500 μs    		50 - 100,000
    Default: 2,500 μs
    顏色QSXGA onlyQSXGA onlyQSXGA only
    焦距Fixed (50-300 mm)Fixed (50-300 mm)
    Liquid Lens Autofocus    		Fixed (50-300 mm)
    Liquid Lens Autofocus
    通信方式USB 2.0 High Speed, Ethernet over USB / HIDRS-232, USB 2.0 High Speed, Ethernet over USB / HIDRS-232, Ethernet TCP/IP, EtherNet/IP?, PROFINET?,
    Power over Ethernet (PoE)
    連接器Micro-B USBHigh-Density 15-Pin D-SubM12 12-Pin (Power), M12 8-Pin (Ethernet)
    線纜N/A0.91 mN/A
    照明Inner LEDs: 4 White/4 Red
    Outer LEDs: N/A    		Inner LEDs: 4 White/4 Red
    Outer LEDs: 8 High-Intensity White or Red (Optional)    		Outer LEDs: 8 High-Intensity
    White or Red (Optional)
    數字 I/ON/A3 in/3 out
    Trigger Input: 5-28V rated (0.16mA @ 5VDC); New Master: 5 to 28V rated (0.16mA @ 5VDC); Default: 3.3V rated (0mA @ 3.3V)
    Outputs (1, 2, 3): 5V TTL-compa tible, can sink 10mA and source 10mA    		3 in/3 out, Optoisolated
    Trigger Input; New Master:
    Bi-directional, opto-isolated, 4.5-28V rated (10mA @ 28VDC)
    Outputs (1, 2, 3): Bi-directional, opto-isolated, 1-28V rated (ICE < 100mA at 24VDC, current limited by user)
    電氣參數5 VDC ± 5 %,
    350 mA at 5 VDC (typ.)    		5 VDC ± 5 %,
    600 mA at 5 VDC (typ.)    		4.75-30 VDC, 200 mV p-p max
    ripple, 150 mA at 24 VDC (typ.)
    尺寸24 mm x 34 mm x 39 mm25 mm x 45 mm x 38 mm25 mm x 45 mm x 45 mm
    重量26 g46 g (包括線纜)68 g
    外殼IP40,塑料IP54, 鋁IP65, 鋁
    指示Target Pattern,
    Good Read Green Flash    		Target Pattern,
    Good Read Green Flash,
    Performance LEDs    		Target Pattern,
    Good Read Green Flash,
    Performance LEDs

    光源
    Type: High output LEDs Output
    Wavelength: 625 nm (Inner Red) nominal / 617 nm (Outer Red) nominal
    Operating Life: 50,000 hours @ 25° C

    環境
    Operating Temperature: 0° to 40° C (32° to 104° F)
    Storage Temperature: -50° to 75° C (-58° to 167° F)
    Humidity: 5% to 95% (non-condensing)

    排放
    EN 55022:2010 Class A Limits


    Microscan邁思肯ID–30 微型條碼掃描器應用案例


    臨床儀器: - 嵌入式條碼掃描 - 追蹤試樣和讀取藥水瓶信息

    醫療器械: - 產品上的點刻或激光打標

    電子行業: - PCB板上的激光打標 - 部件裝配追蹤

    半導體行業: - 包裝和部件上的激光打標
